Description

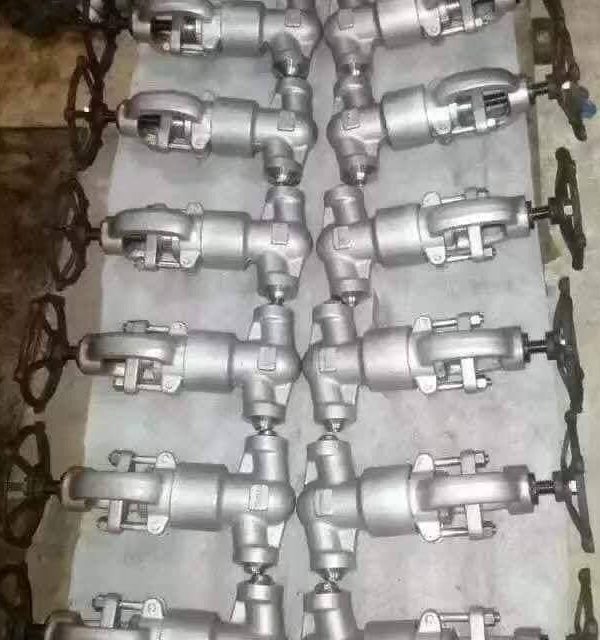

Forged Steel Globe Valve
Body: A105, F11, F304, F316
Seat: A105, F11, F304, F316
Disc: A105, F11, F304, F316
Stem: Stainless Steeel
Gasket: Stainless Steel+Graphite
Bonnet: A105, F11, F304, F316
Bolts: A193 B8M
Stem Packing: Graphite
Globe: Stainless Steel
Globe Flange: A105, F11, F304, F316
Bolts: A193 B8M
Nut: A194 8M
Stem Nut: A276 420
Handwheel: Carbon Steel, Ductile Iron
Nominal Diameter: DN8 to DN40
Nominal Pressure: Class800 to Class2500
End Connection: Buttweld, Threaded or Welded, Flanged
Dimension
Class800Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Unit: mm
| DN | L | d |
| 8 | 79 | 6 |
| 15 | 79 | 10 |
| 20 | 92 | 12 |
| 25 | 111 | 17 |
| 40 | 152 | 28 |
